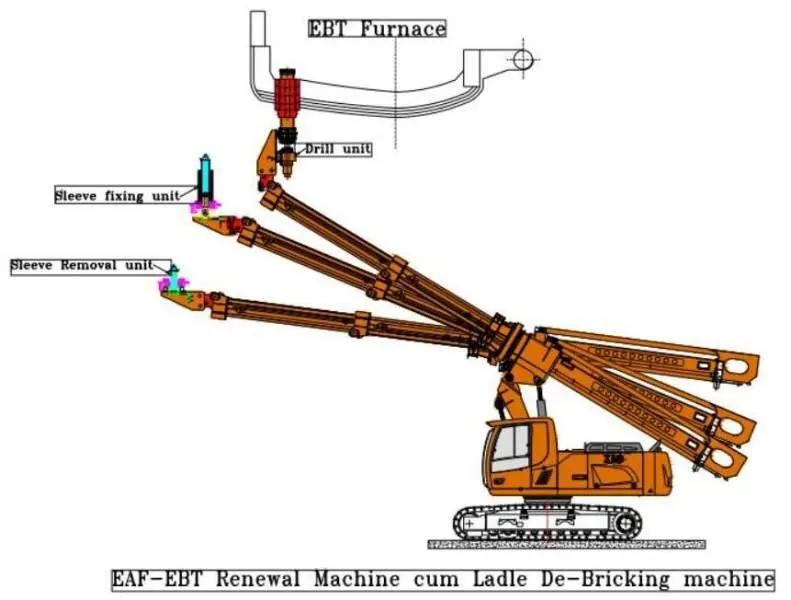

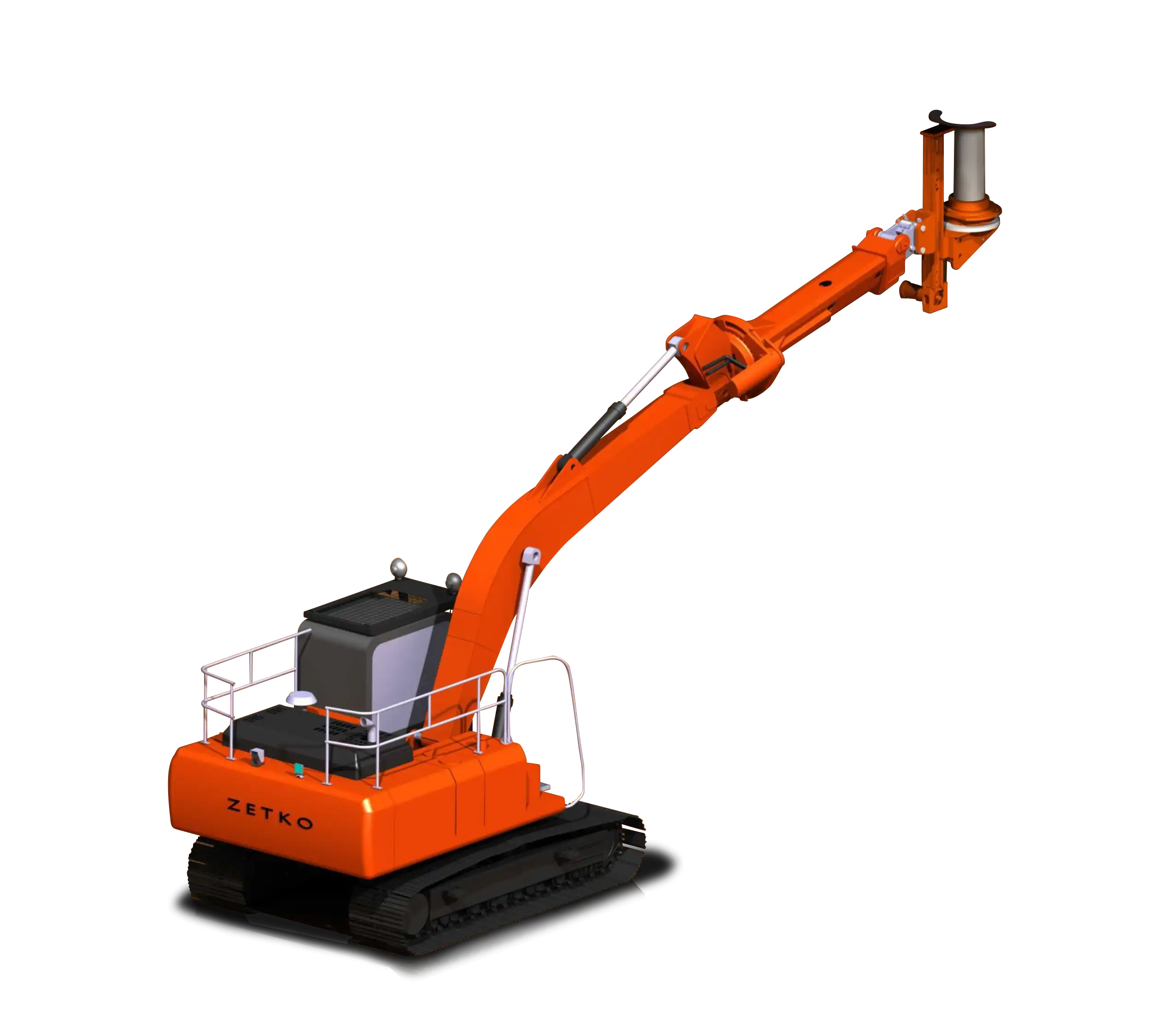

Volcadrilla EBTRM- A used for EBT end plate removal, taphole drilling and new taphole sleeve fixing operation.
With different attachments, you can get different features: Ladle debarking, EAF hearth cleaning, mouth jam cleaning and Launder jam cleaning operations.
1. This equipment can be used for existing or new TBWM
2. Tools/ attachments can be changed in 5 minutes or less with Zetko’s quick coupler technology.
3. Assigned workers can also use the retractable platforms by adding remote to make precise operations.
1. End Plate Removal

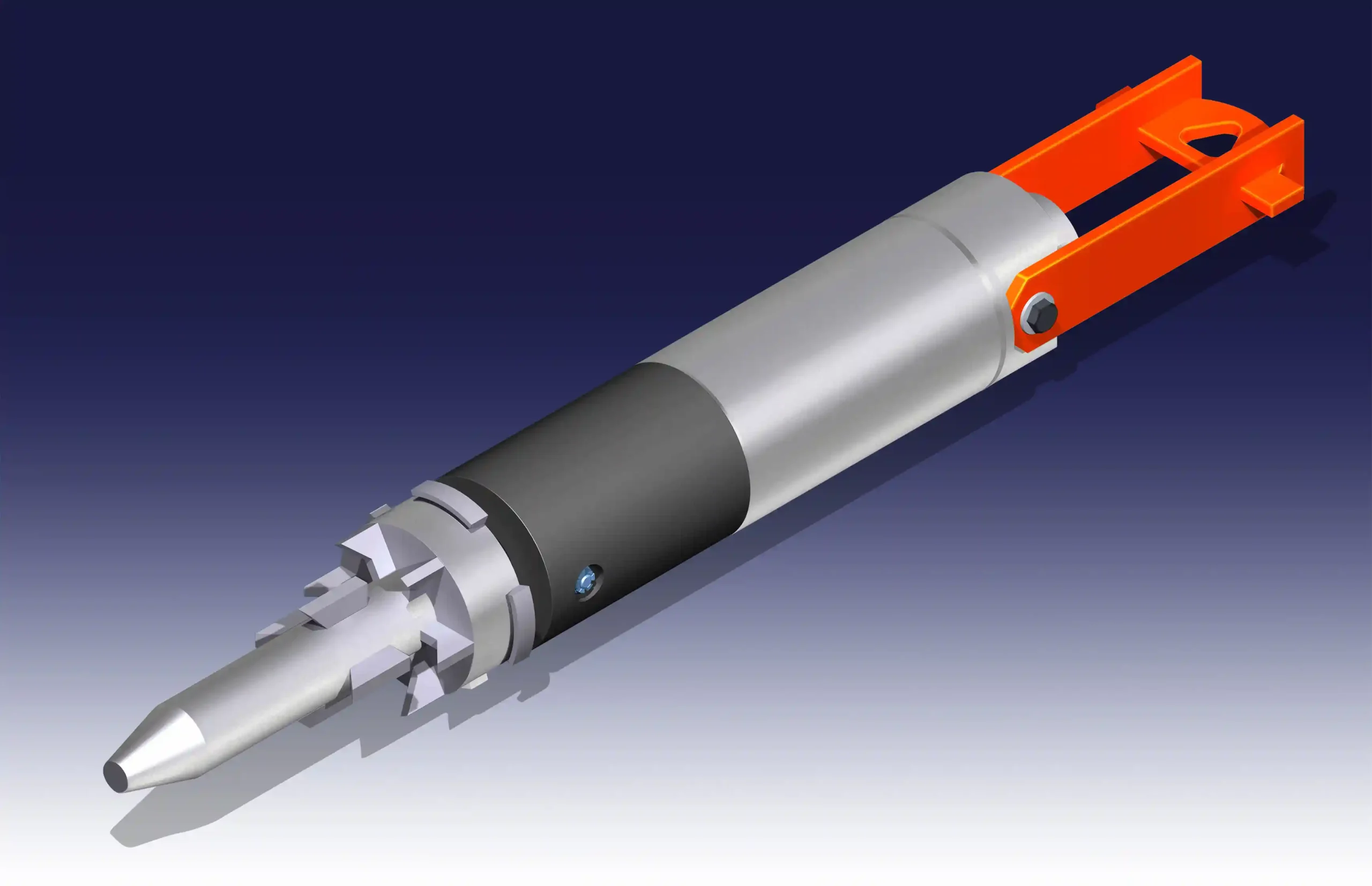

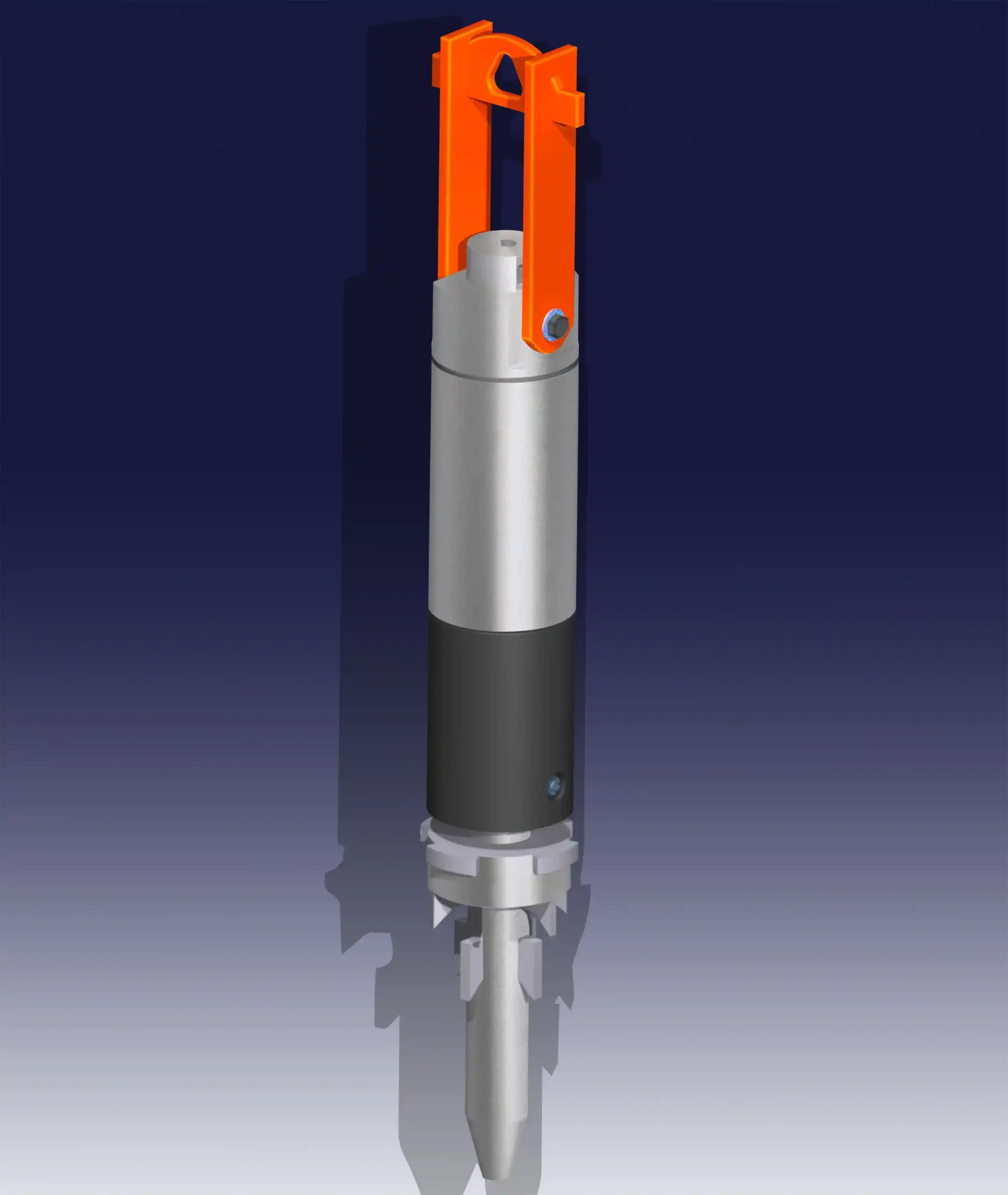

2. Worn sleeve Demolition by Drilling operation
3. New Sleeve Insertion.
Mode of Operation : Electrically Driven
Electrical Motor :Induction Motor 90 kw (50Hz) @ 1500 RPM, 400 Volts.
Hydraulic Tank Capacity :200 Ltrs.
Max Flow Rate Pump :180 LPM
Working Pressure :180 Bar
Power Pack Cooling System :Air Cooled/ water cooled
Ambient Temperature :50°C
Max Torque :9000 Nm
Pressure :240 bar
Nominal Flow :120 lpm
1. End Plate Removal
2. Worn sleeve Demolition by Drilling operation
3. New Sleeve Insertion.
Mode of Operation : Electrically Driven
Electrical Motor :Induction Motor 90 kw (50Hz) @ 1500 RPM, 400 Volts.
Hydraulic Tank Capacity :200 Ltrs.
Max Flow Rate Pump :180 LPM
Working Pressure :180 Bar
Power Pack Cooling System :Air Cooled/ water cooled
Ambient Temperature :50°C
Max Torque :9000 Nm
Pressure :210 bar
Nominal Flow :150 lpm

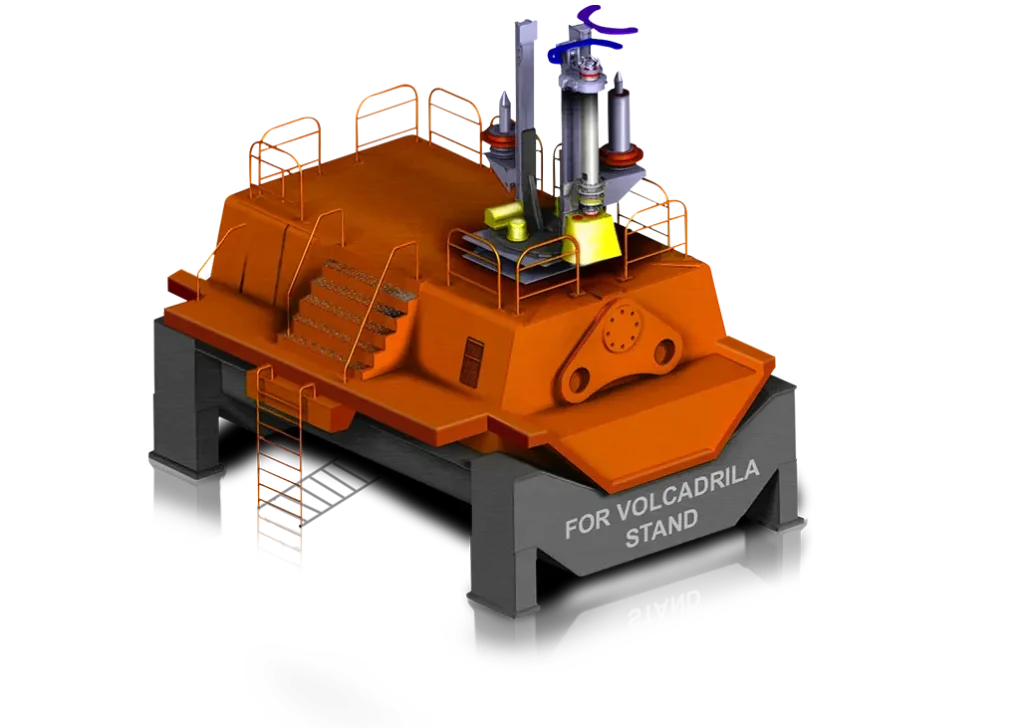

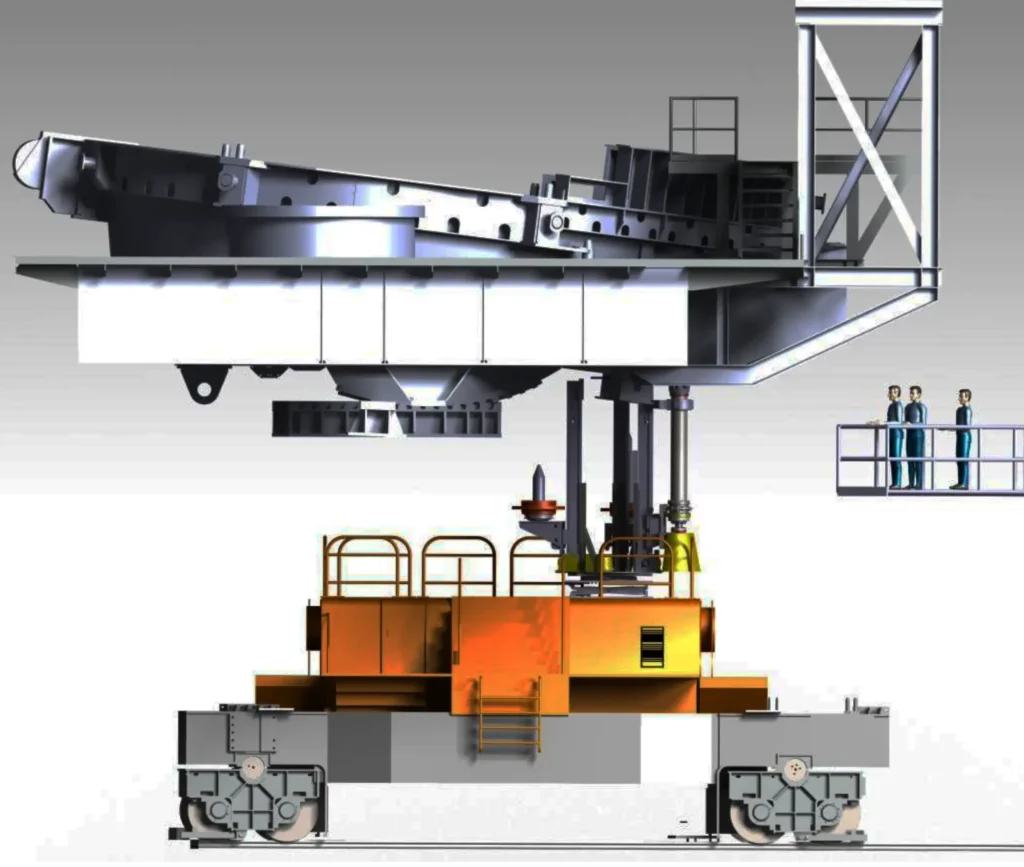

Volcadrilla- L is designed keeping in mind about the space constraints or lack of space under the EAF for EBT maintenance. This equipment can be placed on your existing ladle car or on the track. Moreover, it is equipped with a power pack to perform EBT renewal operations.
Functions: end plate removal, EBT tap hole drilling, and new tap hole sleeve fixing operations.
Key features:
SSM is used to remove the slag formed on the surface of the molten metal in the ladle KR/hot metal desulphurization process aluminum and copper furnaces.
